Description
OD10”Horizontal Vertical Rotary Table
Suitable for milling and drilling works
MT3 Spindle taper
Table made of high-quality cast iron, sturdy sturcture
Hardened and grounded worm shaft
2 clamping lever for clamping of the table
Direct indexing via 360° scale mounted on the table

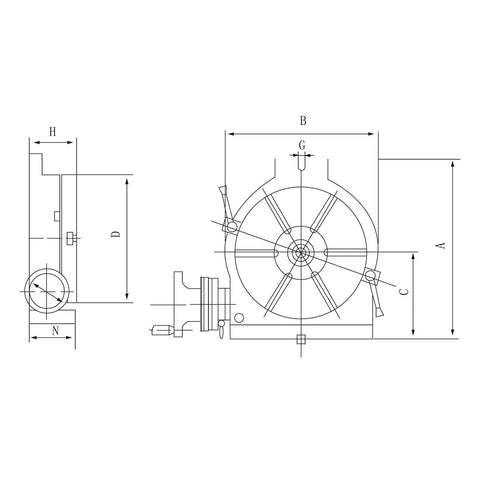

Unit:mm/inches
| A | B | C | D | E | G | H | N |
| 325/12.7″ | 280/11″ | 165/6.5″ | 250/9.8″ | 16/0.62″ | 17/0.66 | 115/4.5 | 113/4.4 |
Specifications
Unit:mm/inches
| SKU | 161110 |
| Model | HV-10 |
| Table dia. | 250mm/10″ |
| Morse taper of the center hole | MT3 |
| Height of center | 165 mm/6.5 |
| Width of T slot | 12 mm/0.5 |
| Adjacent angle of T slot | 60° |
| Width of the locating key | 16 mm/0.6 |
| Modules of worm and worm gear | 2 |
| Transmission ratio of the worm gear | 1:90 |
| Graduation of the table | 360 ° |
| Rotating angle of the table with one revolution of the worm | 4” （1‘ per graduation) |
| Min. value of vernier | 10″ |
| Indexing accuracy | 60″ |
| Max. loading (Table horizontal) | 200 kg/441lb |
| Max. loading (Table vertical) | 100 kg/220lb |
| Packing size | 43x35x18 cm/17x14x7 inch |
| N.W./G.W. | 39/41 kg 86/90lbs |
