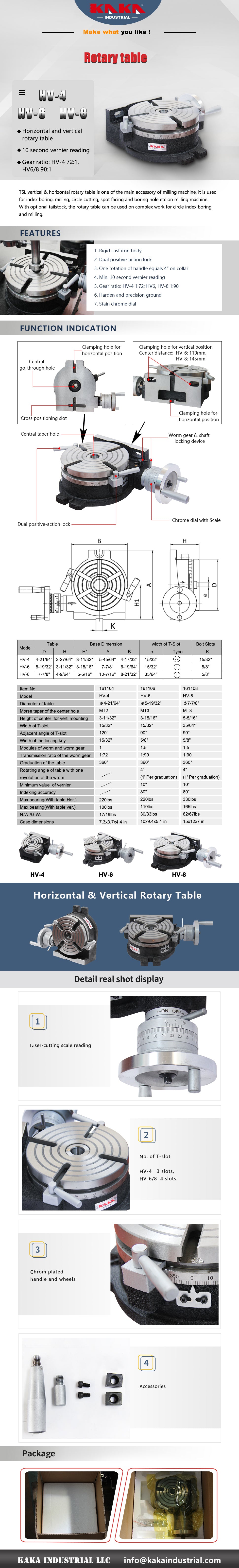

Kaka Industrial HV-4, 4”Horizontal Vertical Rotary Table Rotary table TSL Vertical & Horizontal MT2 Center Sleeve Rotary Table 3 slot Precision Milling Table 360 Degrees Precision Rotary Table

Description

SKU: 161104

MODEL: HV-4

Diameter of the table (in): φ3

Morse taper of the center hole: MT2

Height of center  for vertical mounting (in): 2.32 “

Width of T-slot(in): 0.314 “

Adjacent angle of T-slot: 90″

Width of the locting key (in): 0.472

Modules of worm and worm gear: 1

The transmission ratio of the worm gear 1:36

Graduation of the table：360°

Rotating angle of table with one revolution of the worm: 10

Max. bearing(With table Hor.)lb: 220

Max. bearing(With table ver.)lb: 100

N.W./G.W.  :17/19 lb

Case dimensions: 7.3×3.7×4.4 in
