Description
Function Indication

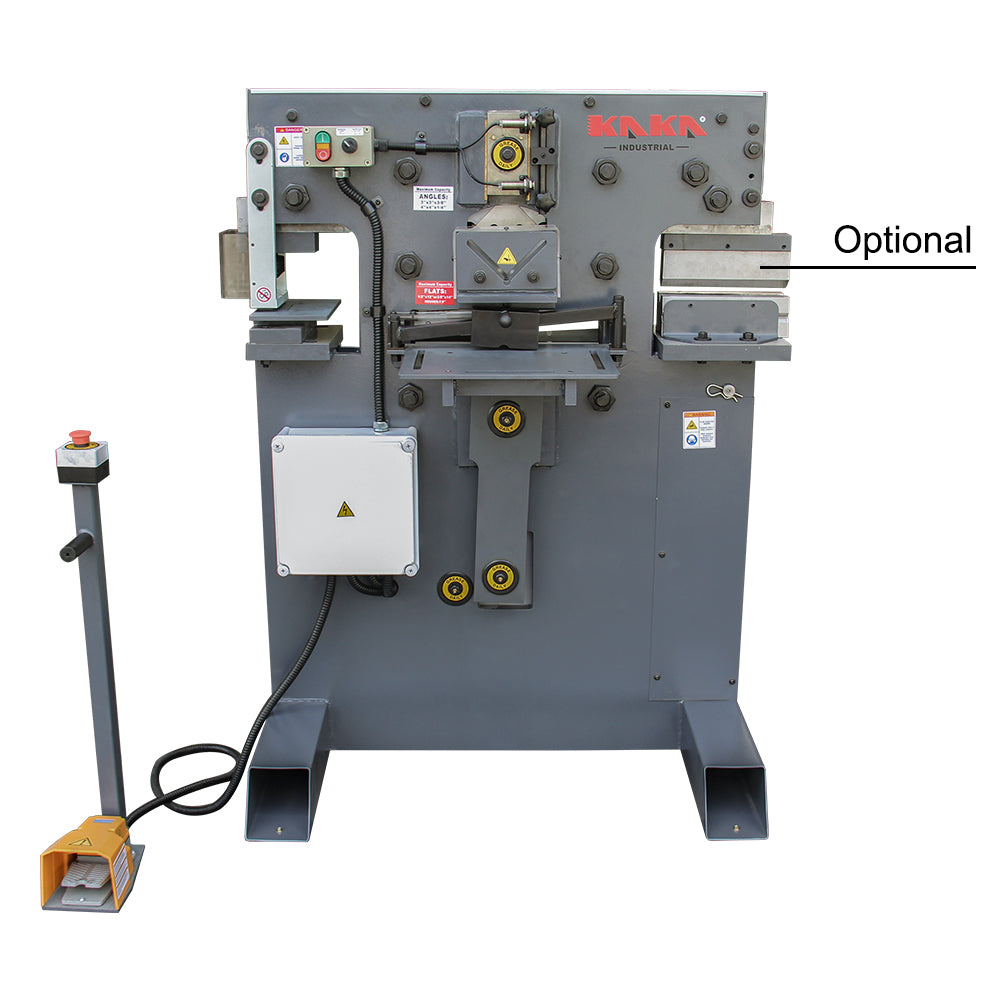

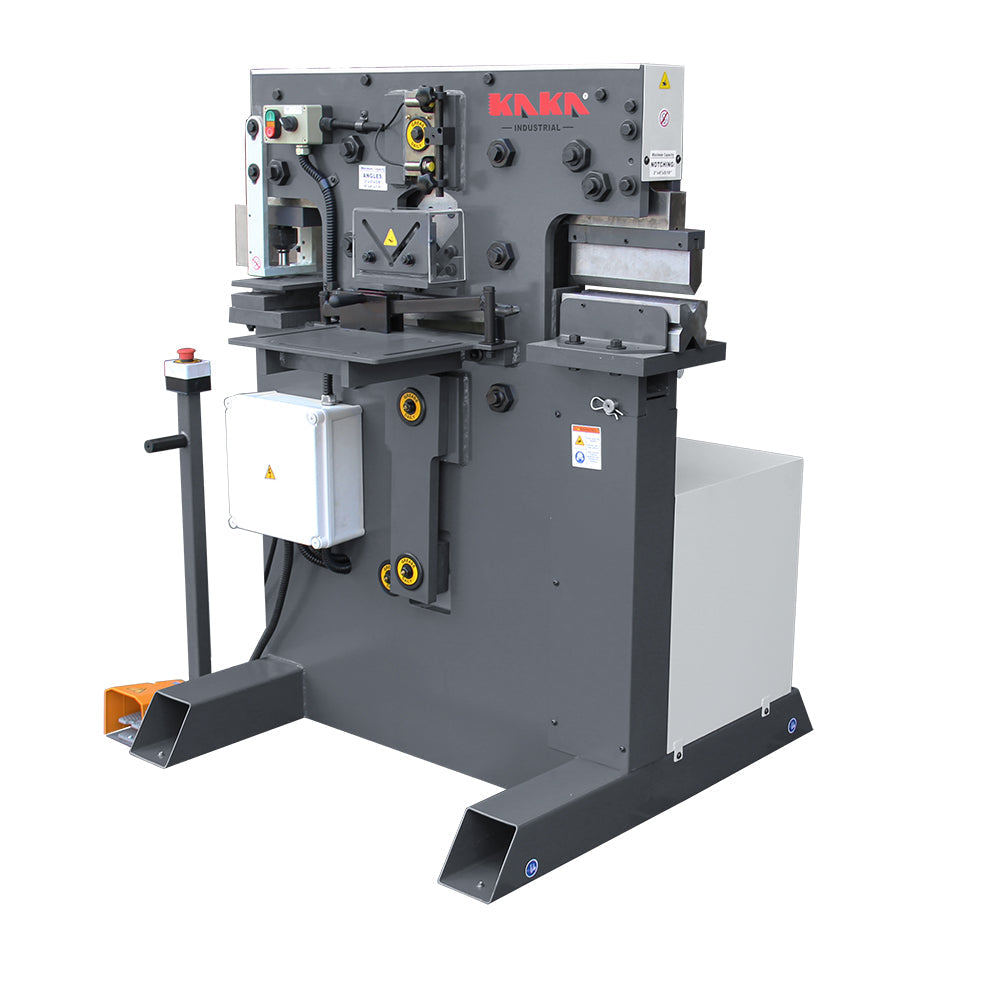

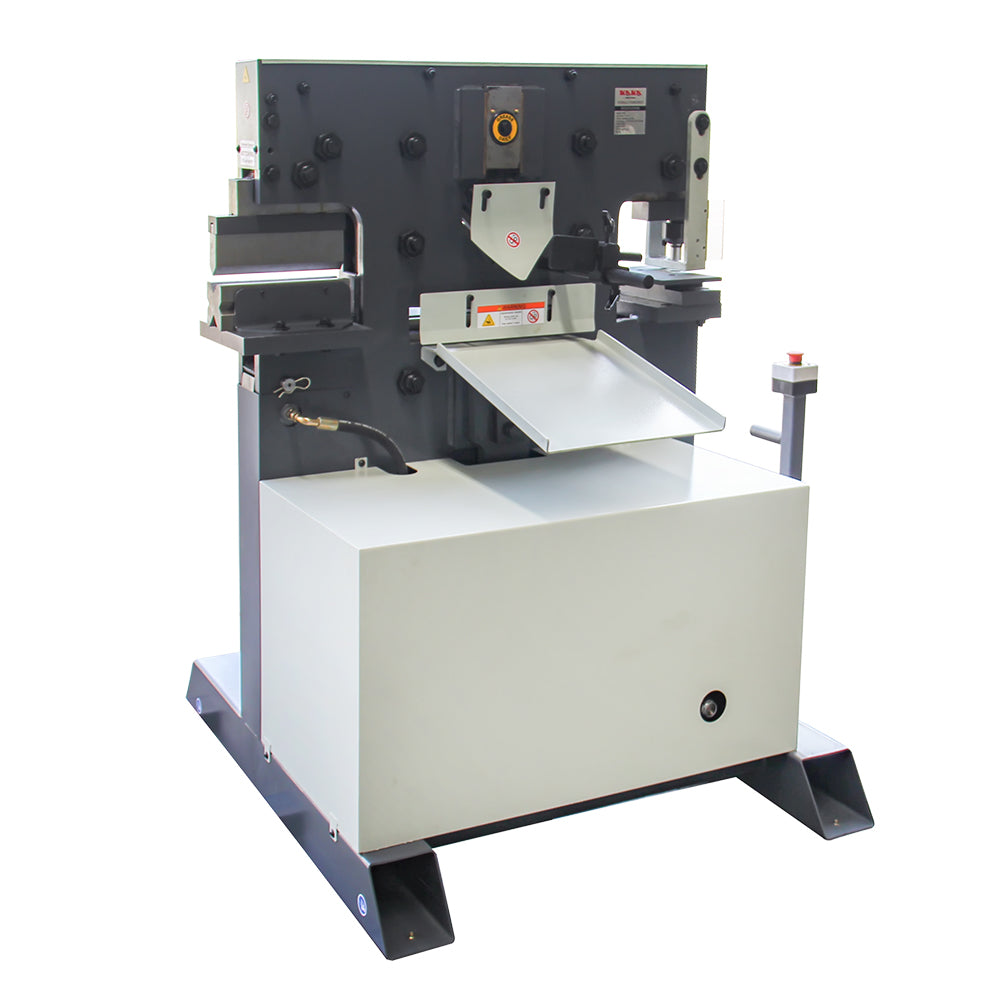

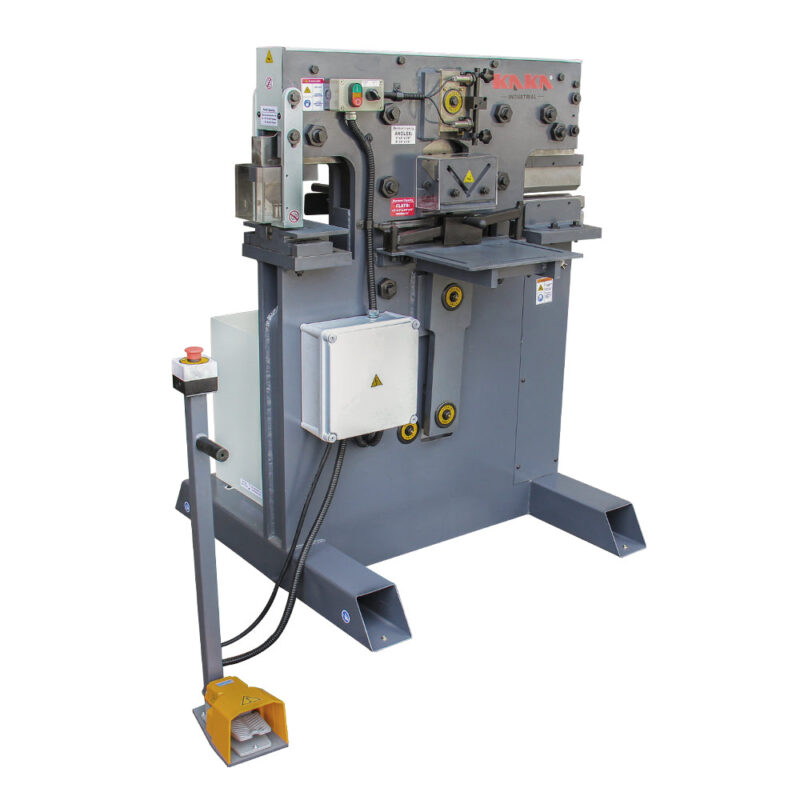

1、Ironworker is used for punch, shear, notch and brake mild steel plate, bar-stock and angle.

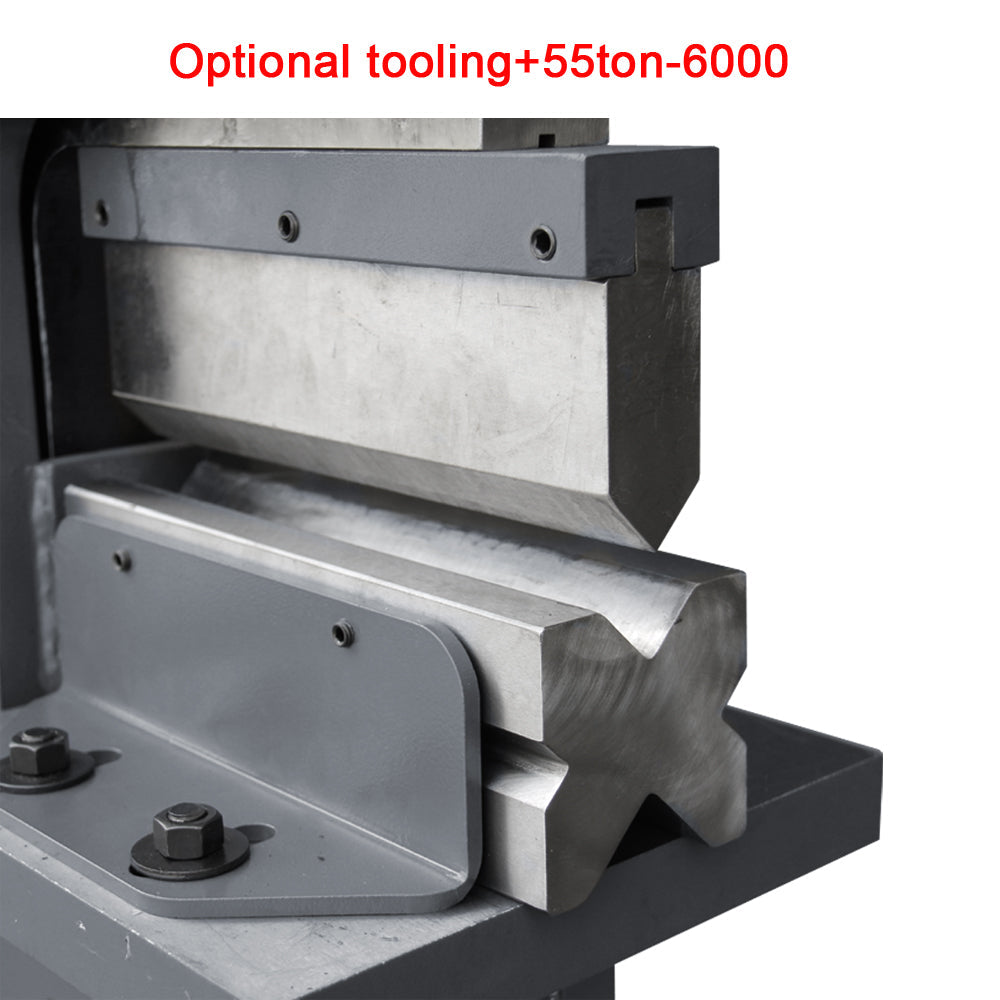

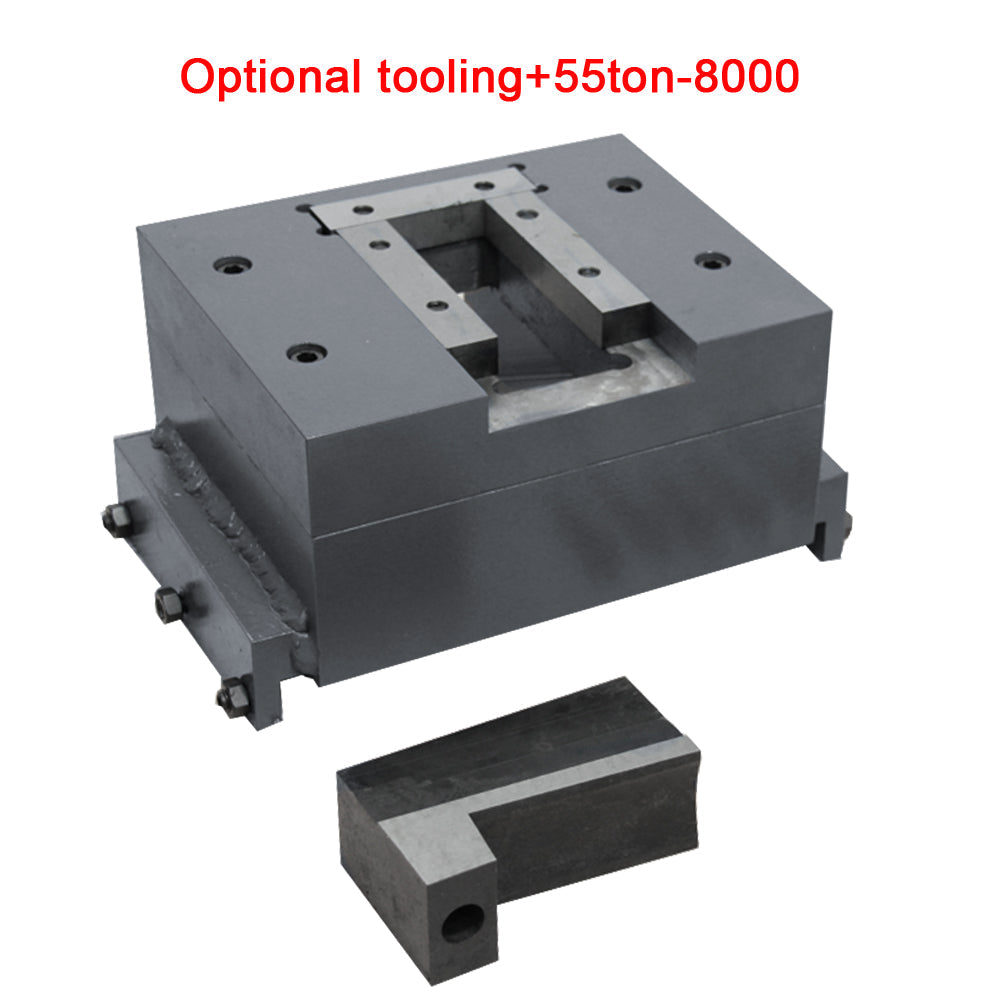

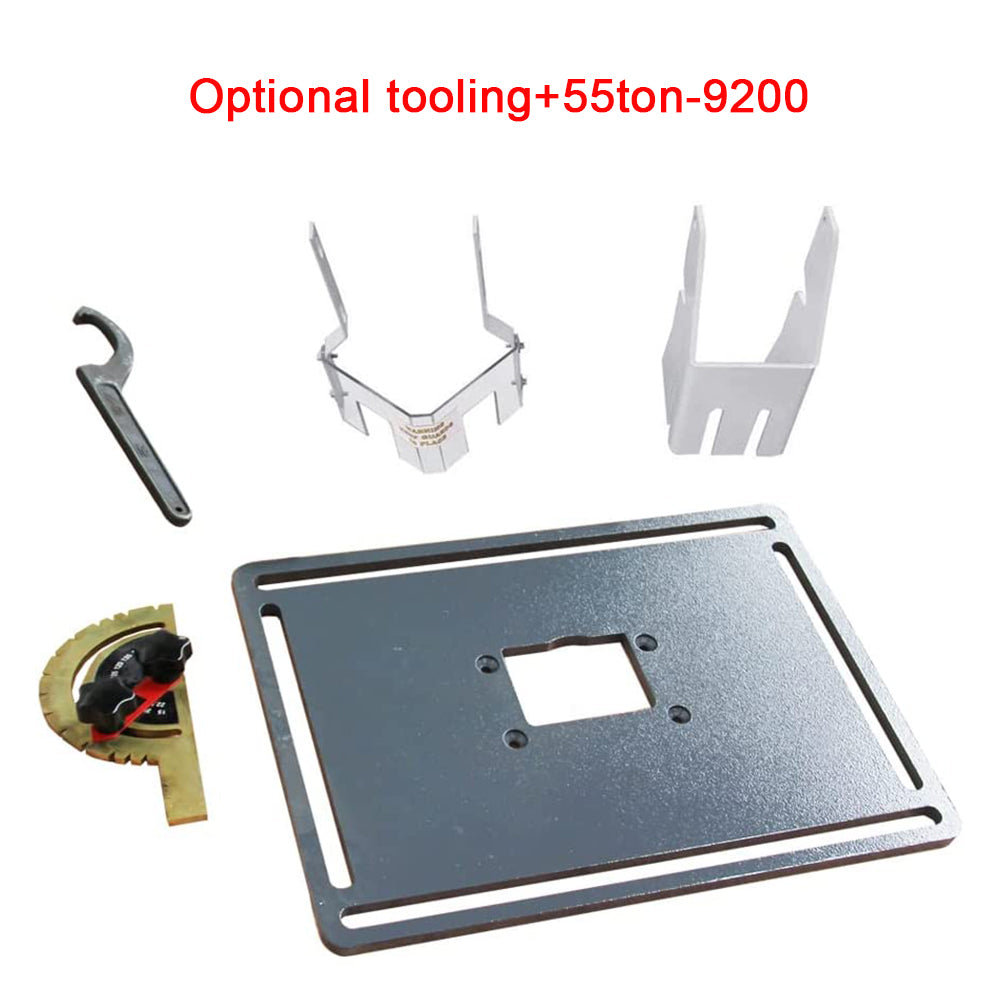

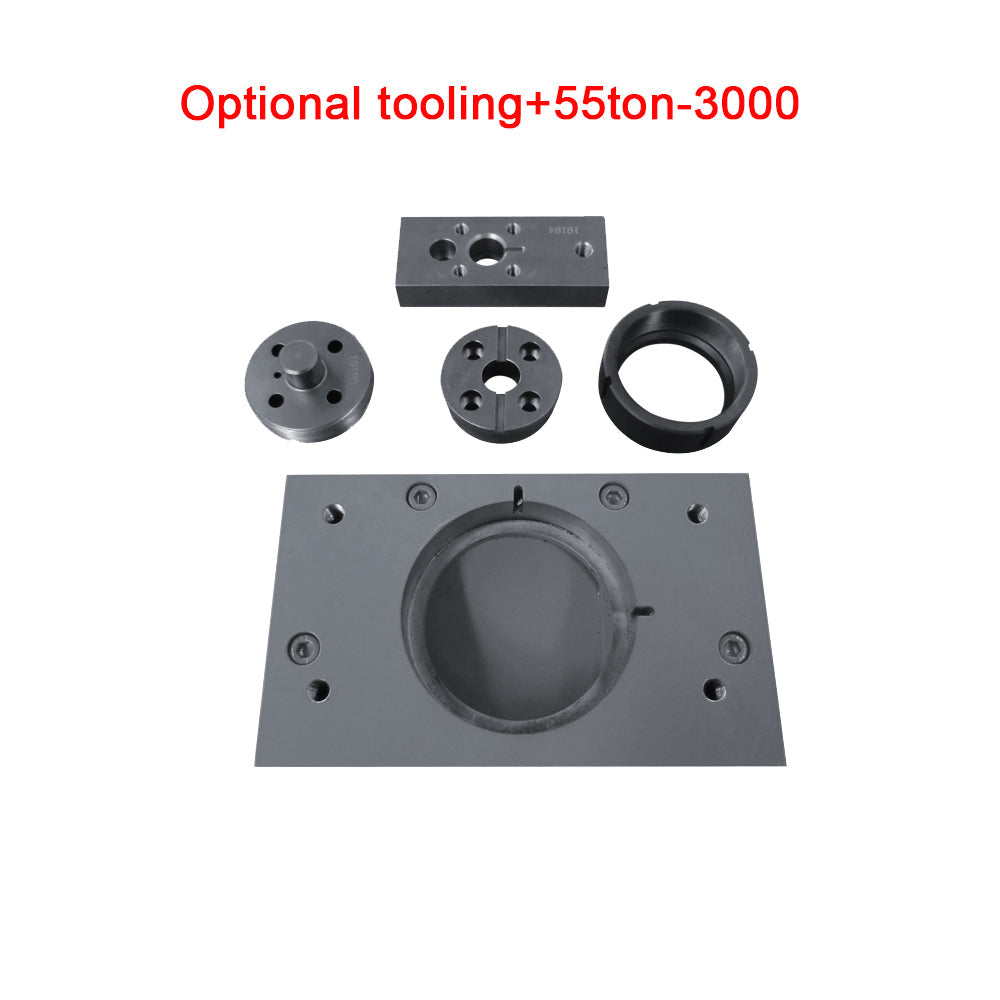

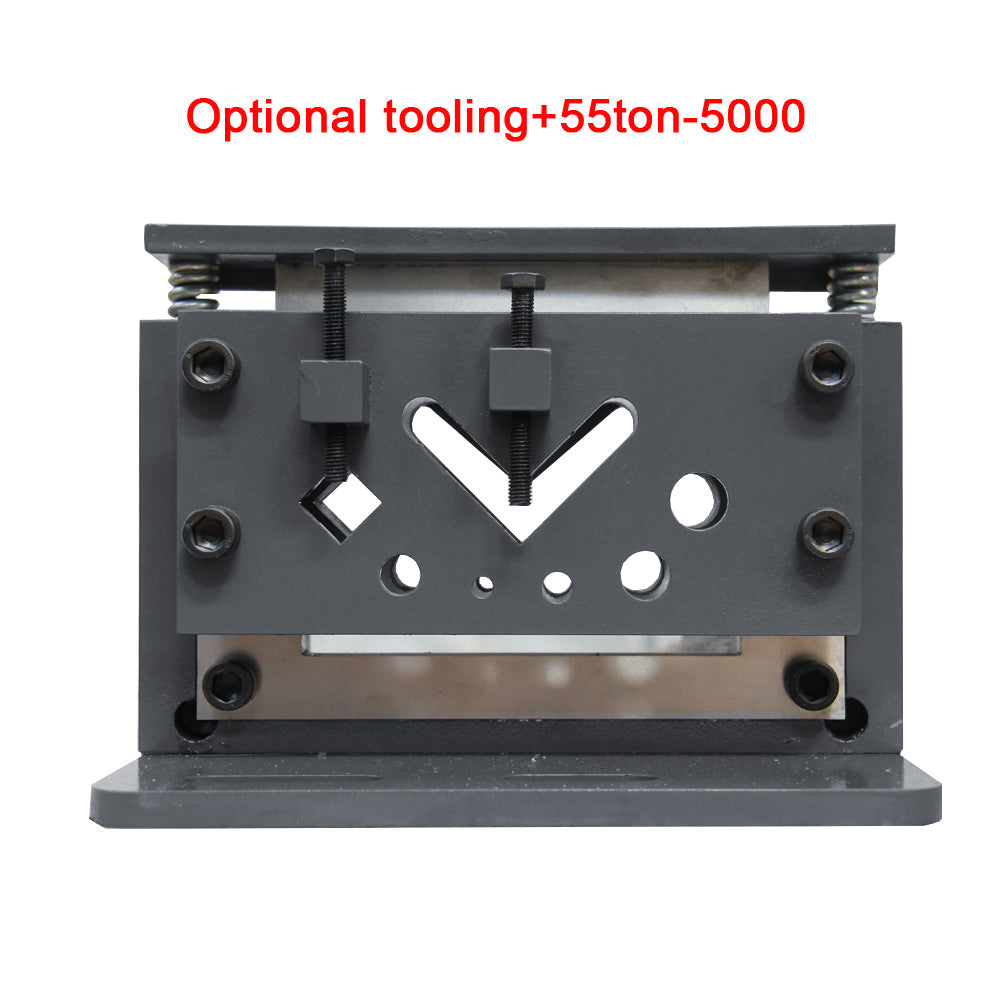

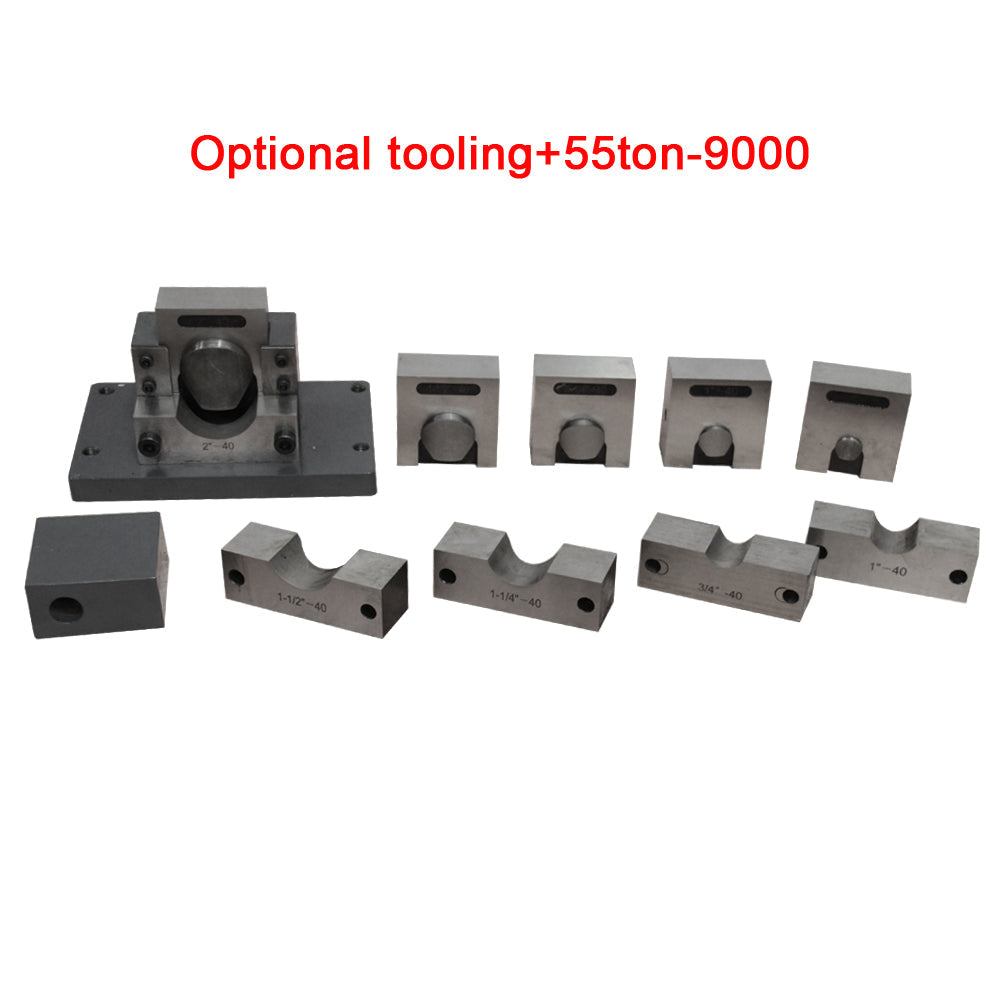

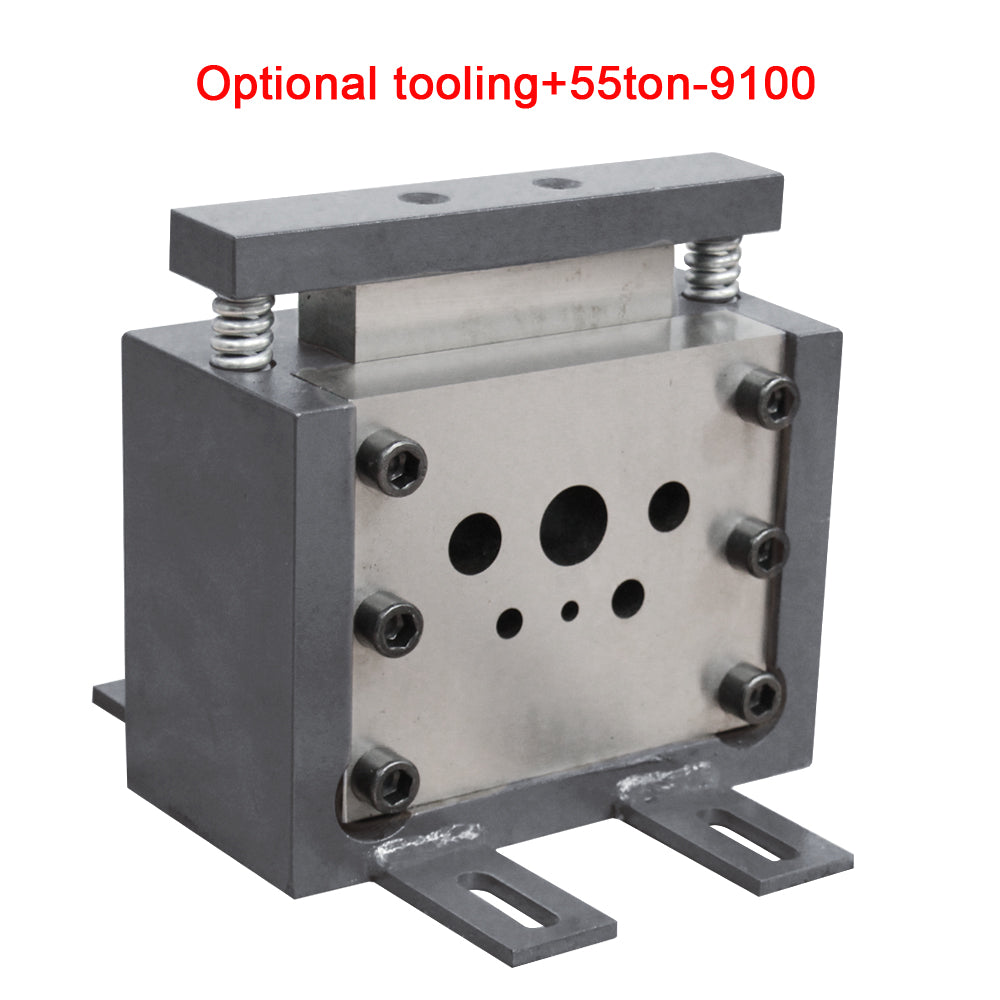

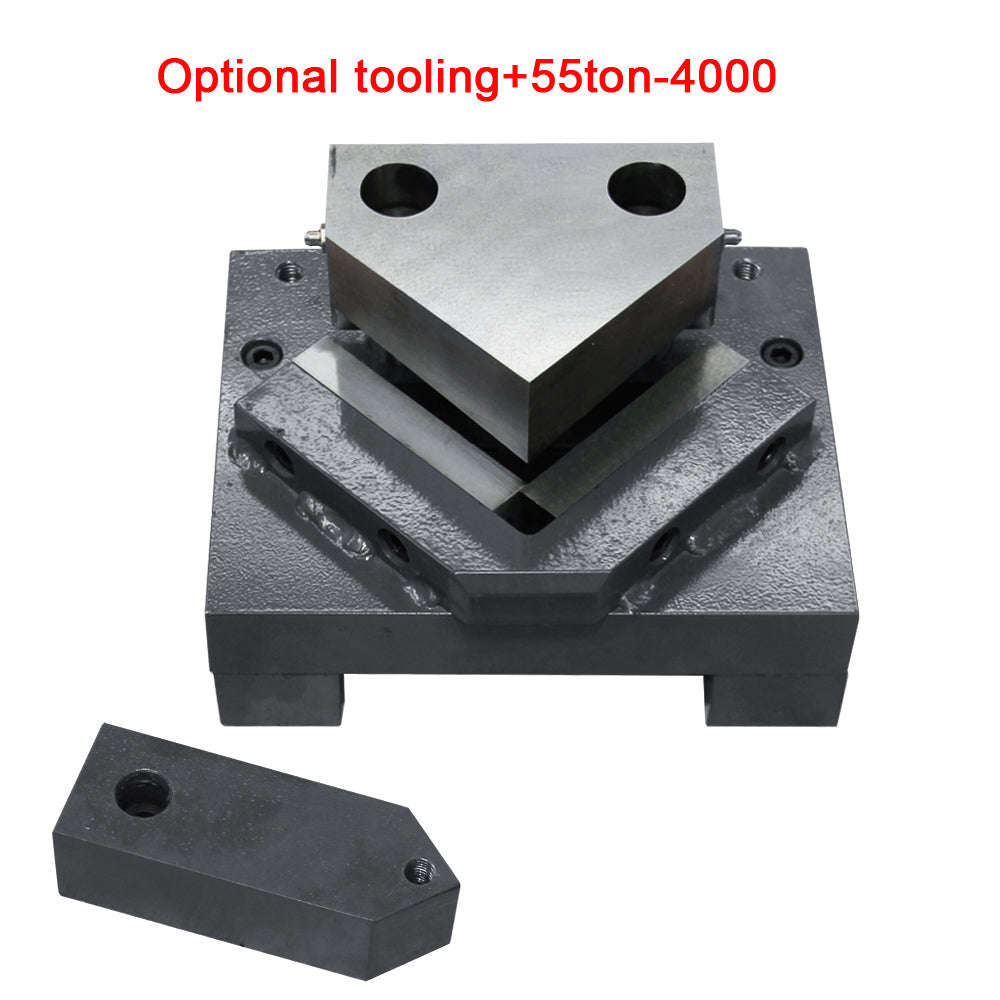

2、A wide range of acessories are avaiable to fabricate rod, square stock, sheet metal and pipe.
3、55 tons capacity
4、3 fixed sations and 1 open station

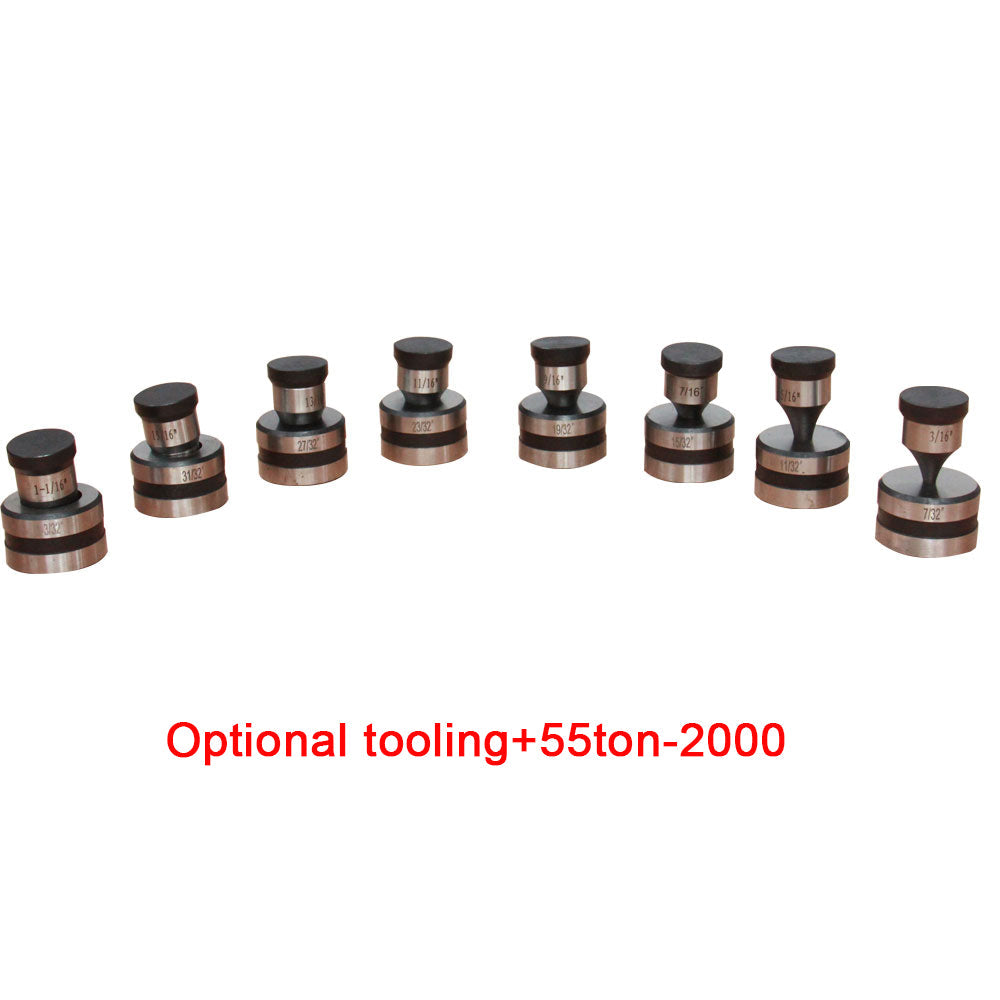

5、Standard: plate cutting sation, angle steel shear and hole punching position with 15/16′ dies
6、Adjustable stroke travel
| Item No. | 181111 | |
| Model | M-55 | |
| Rated capacity | 55 Ton | |
| Punch capacity | Diameter | 1-1/16’dia.in 5/8’plate |
| Throat depth | 7-1/16′ | |
| Stroke | 1-1/4′ | |
| Work height | 35-7/16′ | |
| Flat Bar Shearing | Max. width | 1/2’x12′ or 3/8’x14′ |
| Max. round | 7/8′ | |
| Max. square | 7/8’x7/8′ | |
| Work height | 34-5/8′ | |
| Angle Shearing | Max. capacity | 4’x4’x1/4′ or 3’x3’x3/8′ |
| Throat depth | 7-3/8′ | |
| Work height | 40-1/2′ | |
| Open station | Open height | 8′ |
| Shut height | 6-3/4′ | |
| Throat depth | 7-1/16′ | |
| Work height | 34-5/8′ | |
| Motor power | 4kW (5-1/2HP) | |
| Packing Size | 46x45x60 in | |
| N.W/G.W | 2332/2552 lbs | |
