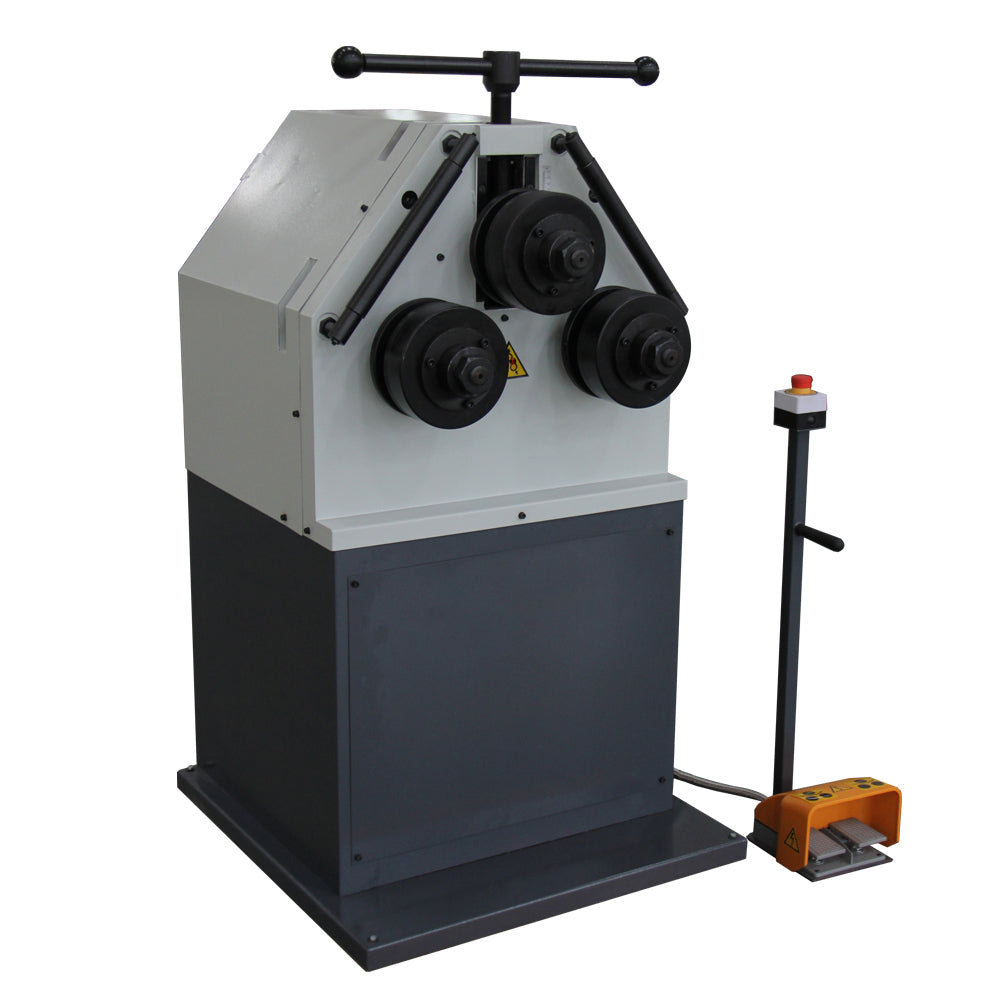

Description
1.Simple and flexible operation
2.The service life of the rolling die is long and the deformation is small.One set standard rollers delivery with machine
3.The gear is made of high-strength carbon tool steel, which is durable
4.The clearance of the three rolls can be adjusted during operation to save materials
5.Machine can be set up in horizontal or vertical working position

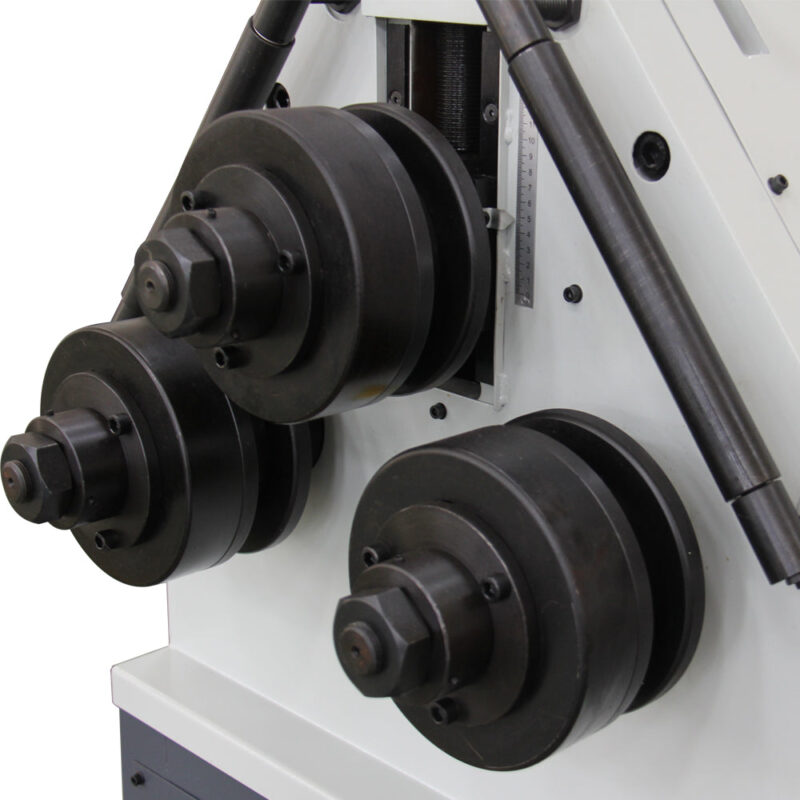

6. Standard rolls and guide rolls are included
7. Electric control,220 Volt 3 phase
BE CAREFUL
Carefully check whether the safety device is in good condition before use
Don’t put hands and feet on the rollers and transmission parts during operation
Cut off the power supply after the operation is completed
Specification:
|
Item No. |
191011 |
||
|
Model |
RBM-50HV |
||
|
Dia. Of roller |
1.97” |
φ50 mm |
|
|
Power |
2.2kw/3HP |
||
|
Spindle speed |
@60Hz 10.8 R/min |
@50Hz 9 R/min |
|
|
Packing Size |
39”x32”x61” |
100x82x155 cm |
|
|
N.W./G.W. |
1012/1182 lbs |
460/537 kg |
|
|
Capacity |
Size(mm) |
Min Dia.(mm) |
|
 |
60×10 40×10 |
500 650 |
|
 |
100×15 60×10 |
920 1150 |
|
 |
35×35 20×20 |
600 780 |
|
 |
60×7 50×5 |
750 700 |
|
 |
60×7 50×5 |
750 700 |
|
 |
80x45x6 65x40x5 |
600 550 |
|
 |
80x45x6 65x40x5 |
650 550 |
|
 |
60×5 50×5 |
500 500 |
|
 |
60×5 50×5 |
700 700 |
|
 |
￠35 ￠30 |
600 650 |
|
 |
60x60x3 40x40x3 |
600 500 |
|
|
70x50x3 |
1200 |
|
|
50x40x3 |
800 |
||
All the above processing capacities can be finished by one set of standard combination roller
Special roller:
|
Profile |
Size(mm) |
Min Dia.(mm) |
 |
30×2 35×2 40×2 45×3 50×2 55×2 60×2 65×2 70×2 |
600 |
We can design the rollers for you as per your special requirements. And we can make the rollers in various materials such as nylon
