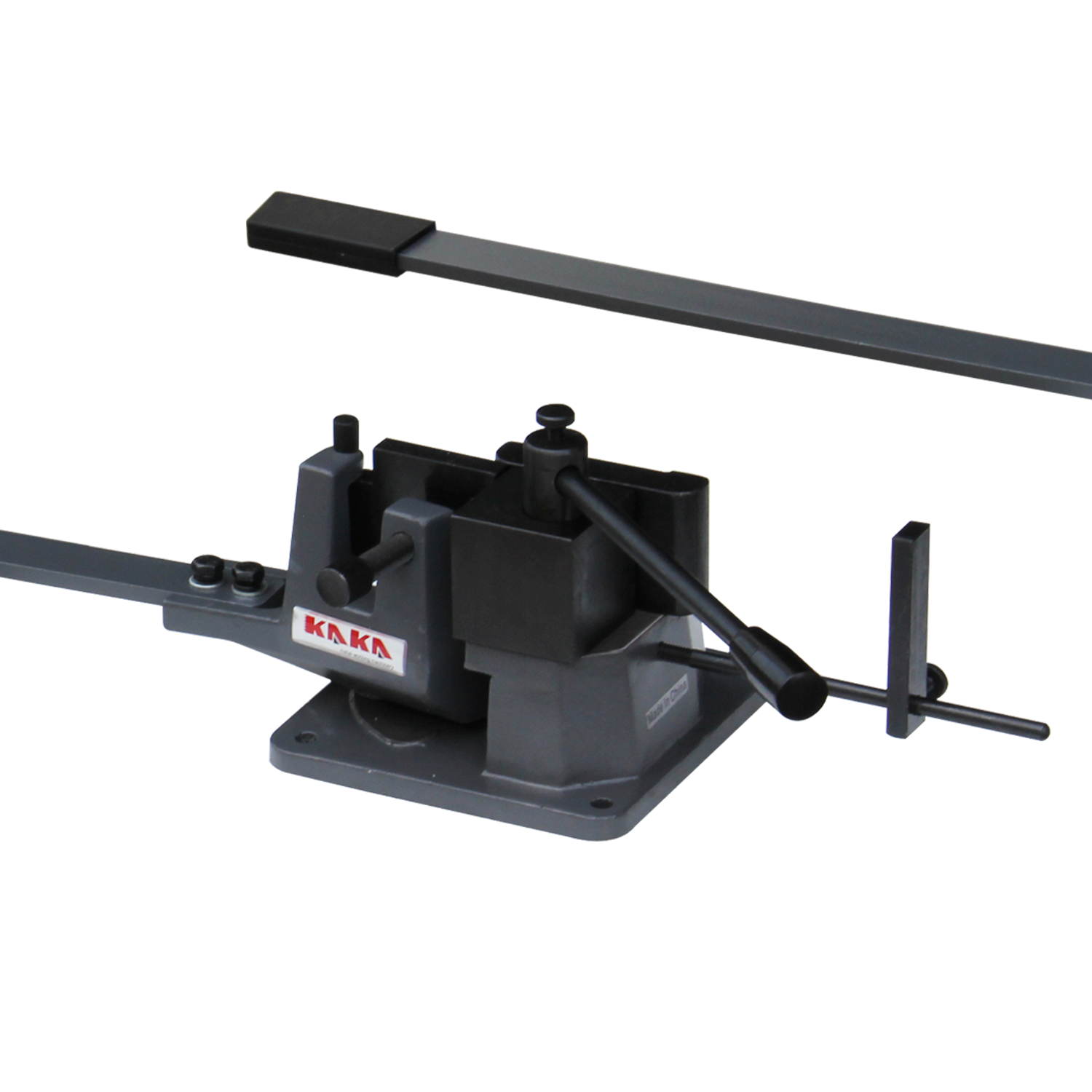

Description
About Delivery: The handle for the machine is seperated packed because of the length limited. So we will delivery TWO package for each product. If you have special requirments, please let we know when you confirm order. Thanks.
Features:
- sturdy design for screw mounting on workbench
- infinitely variable bending stop adjustment

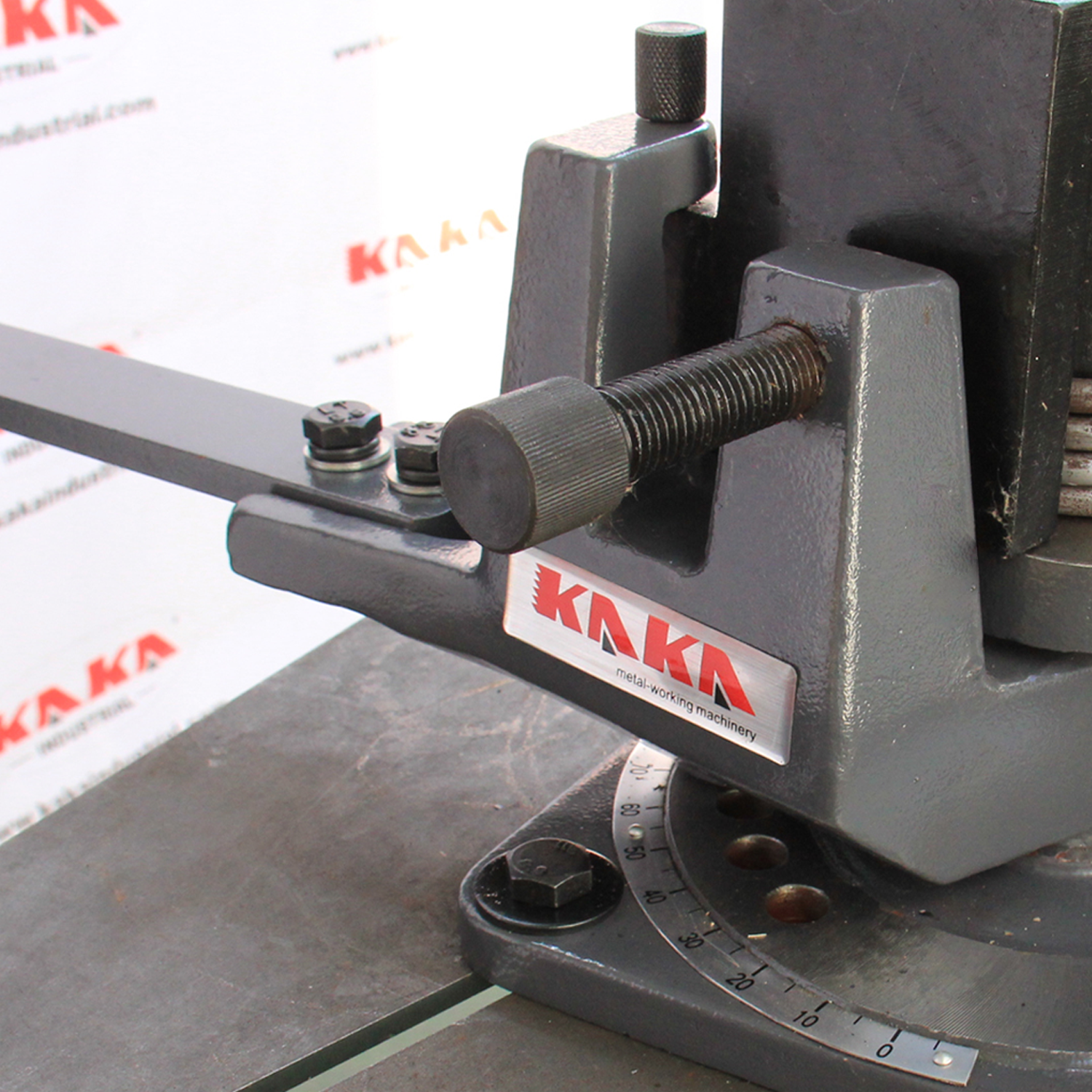

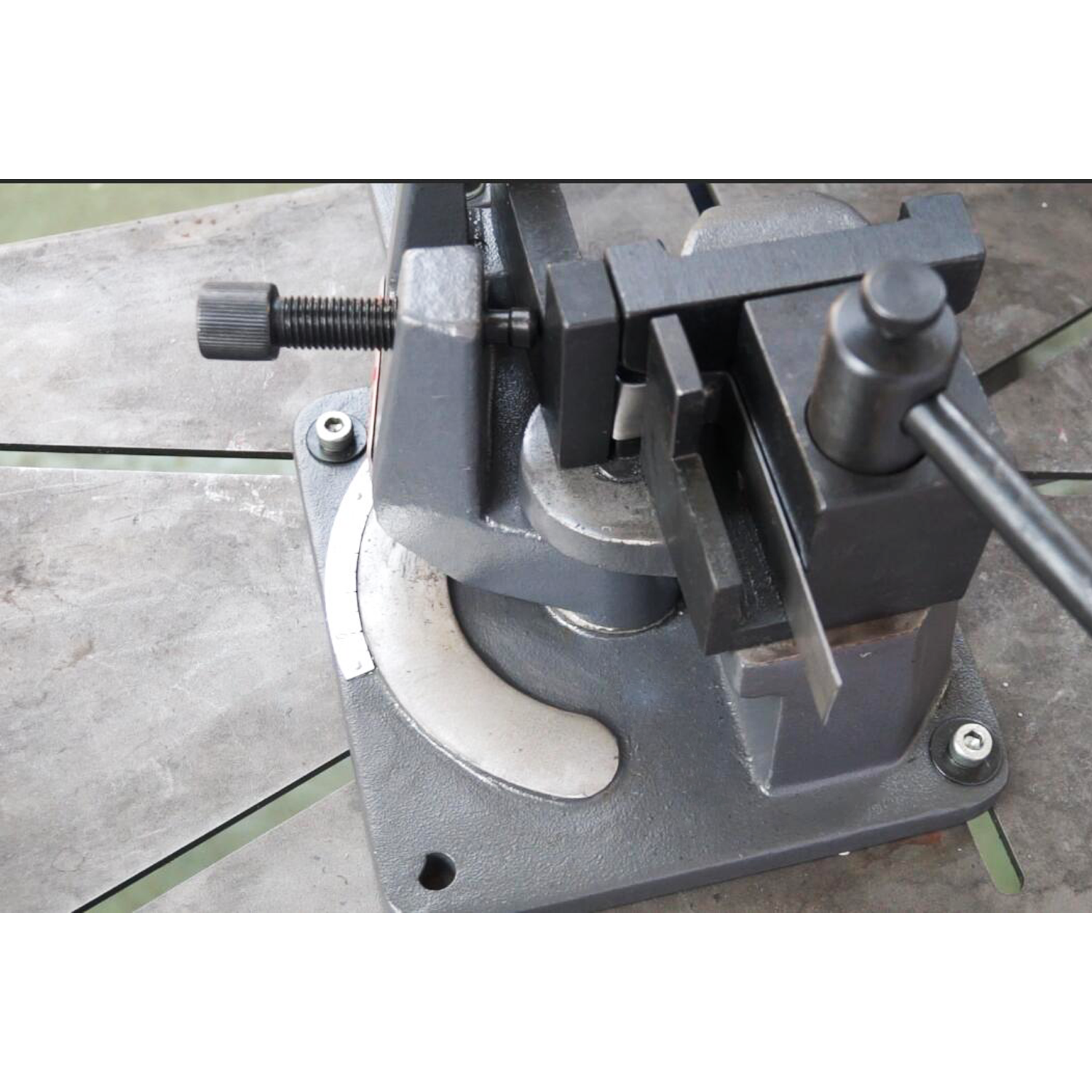

- with eccentric quick clamp for streamlined operation
- bending angle to 120 degree

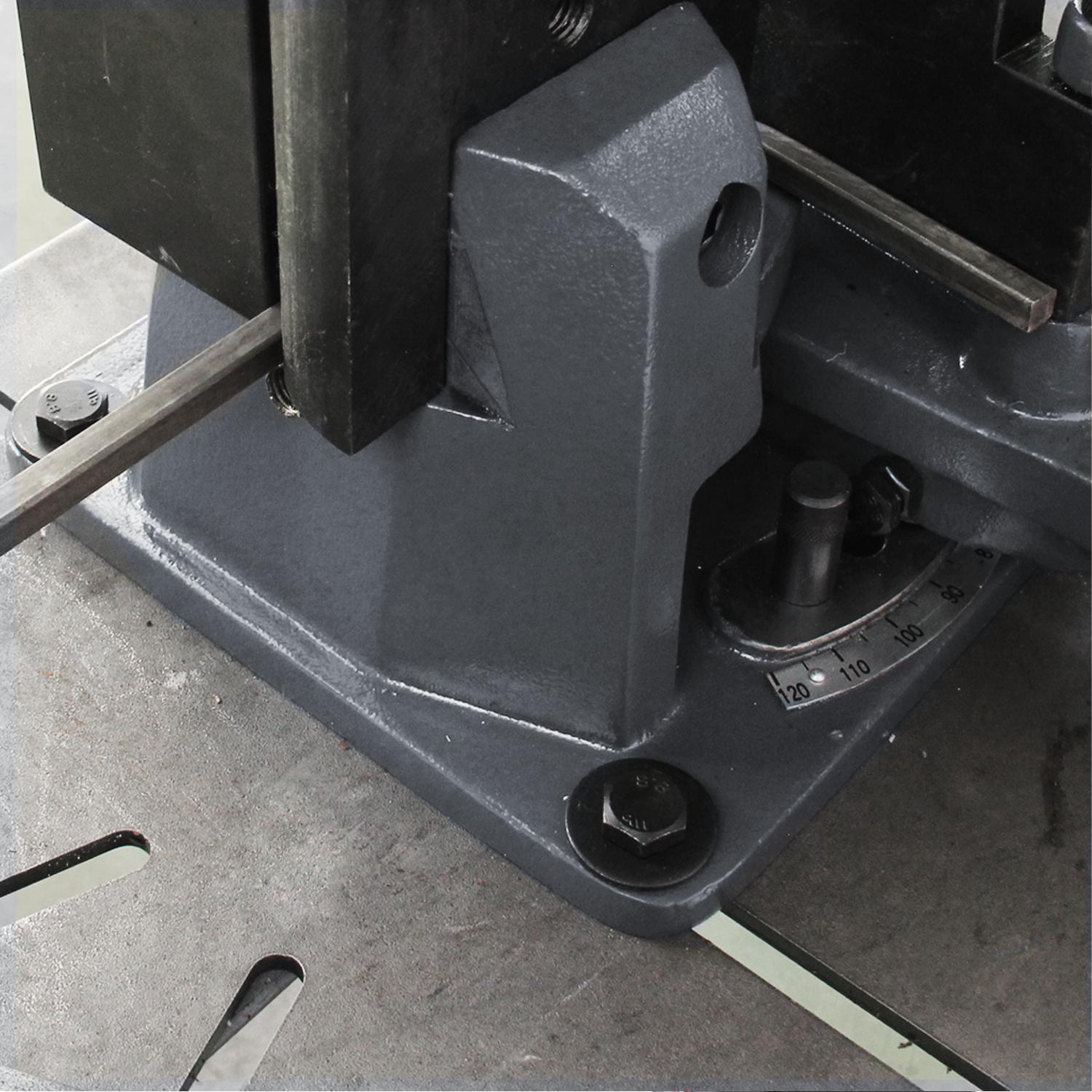

- bending angle stop for high repeatability
- ideal for repair shops and metal working shops

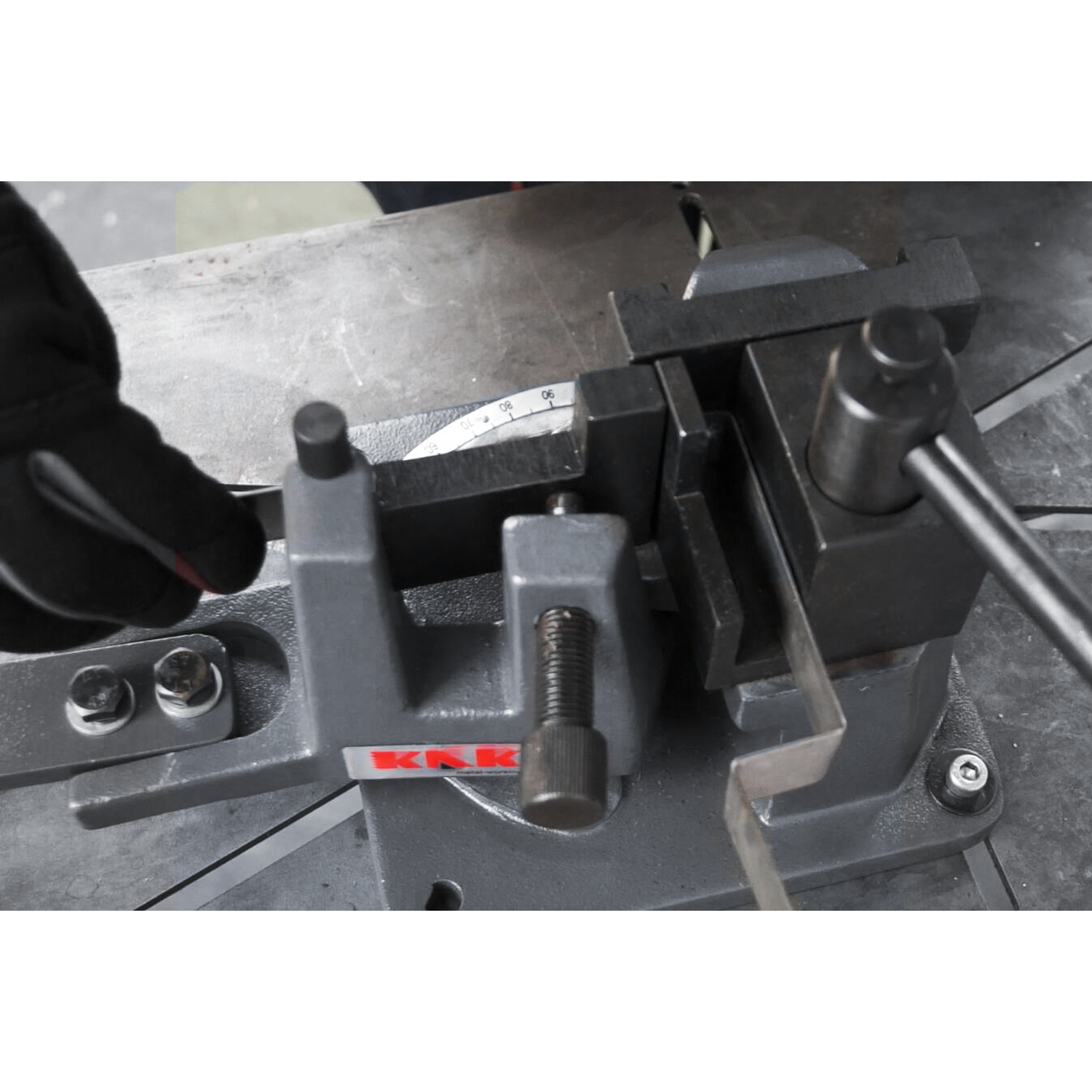

Easy and precise operation.
Bending angle up to 120 degree.
Extremely high precision of bending within the bending range.
Wide supporting face ensuring safe and reliable operation.

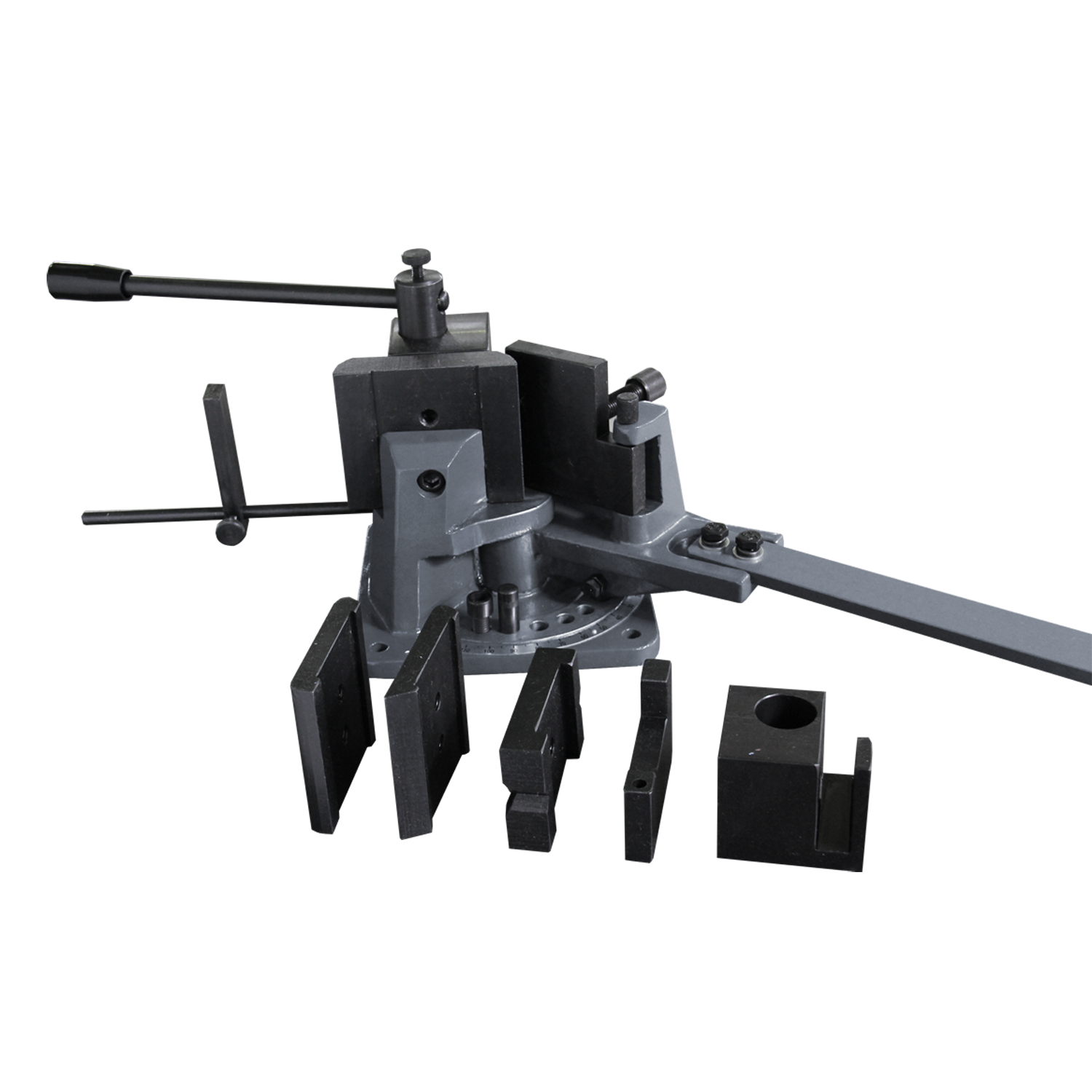

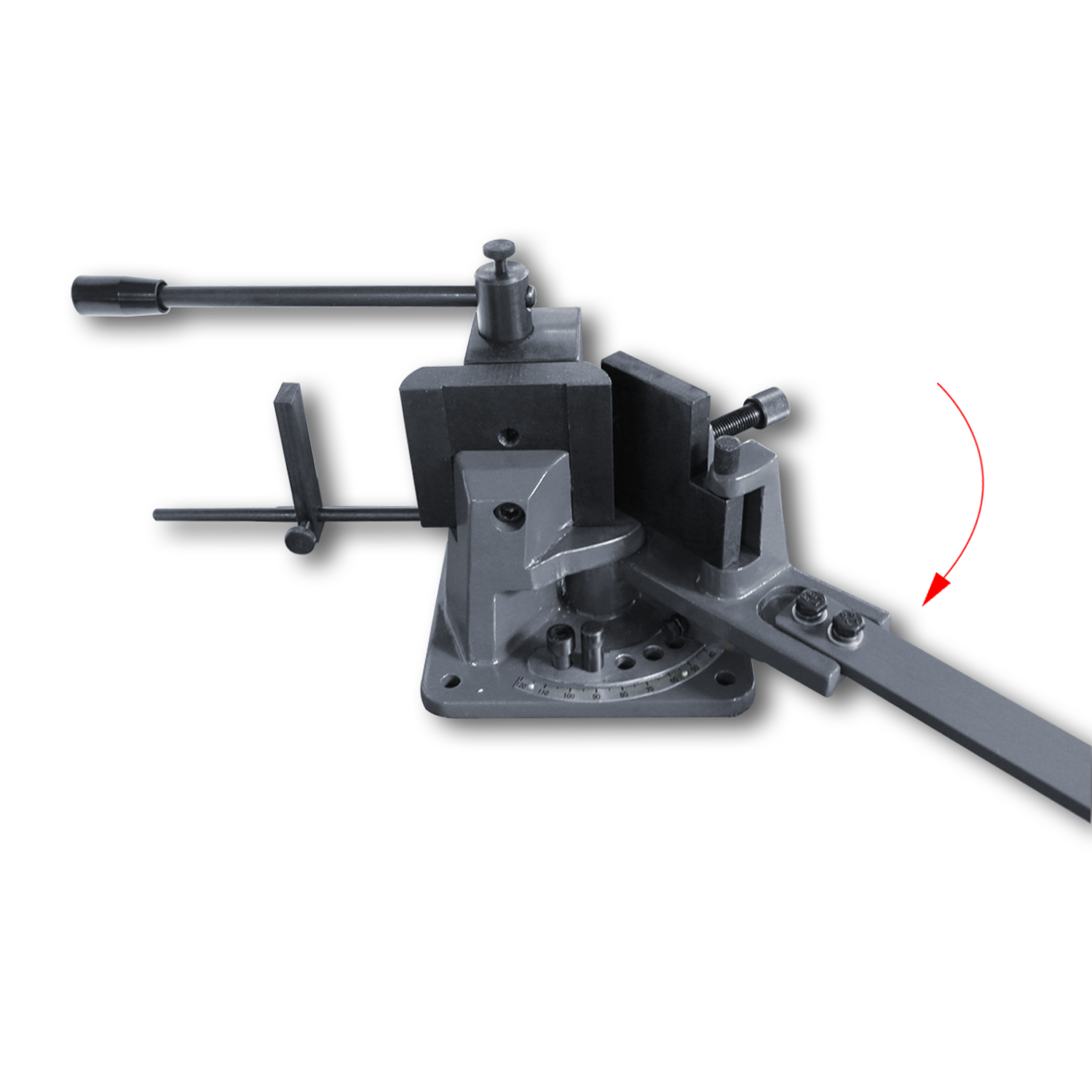

Bending angle of various radius by changing and turning around die plate,
Using bending eccentric block instead of bracket.
Specification:
|
Item |
173201 |
|
|
Model |
UB-70 |
|
|

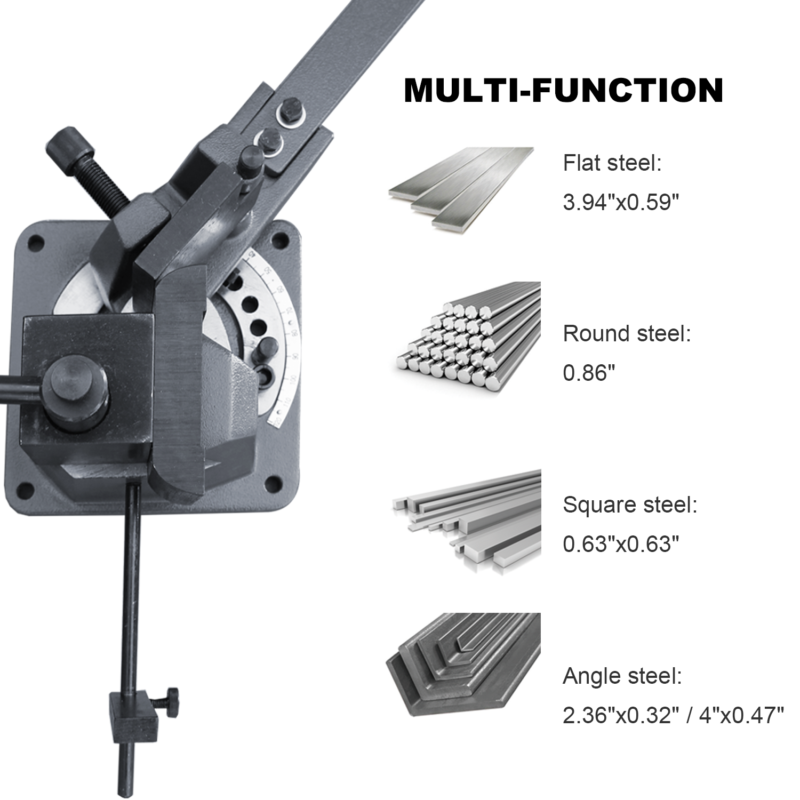

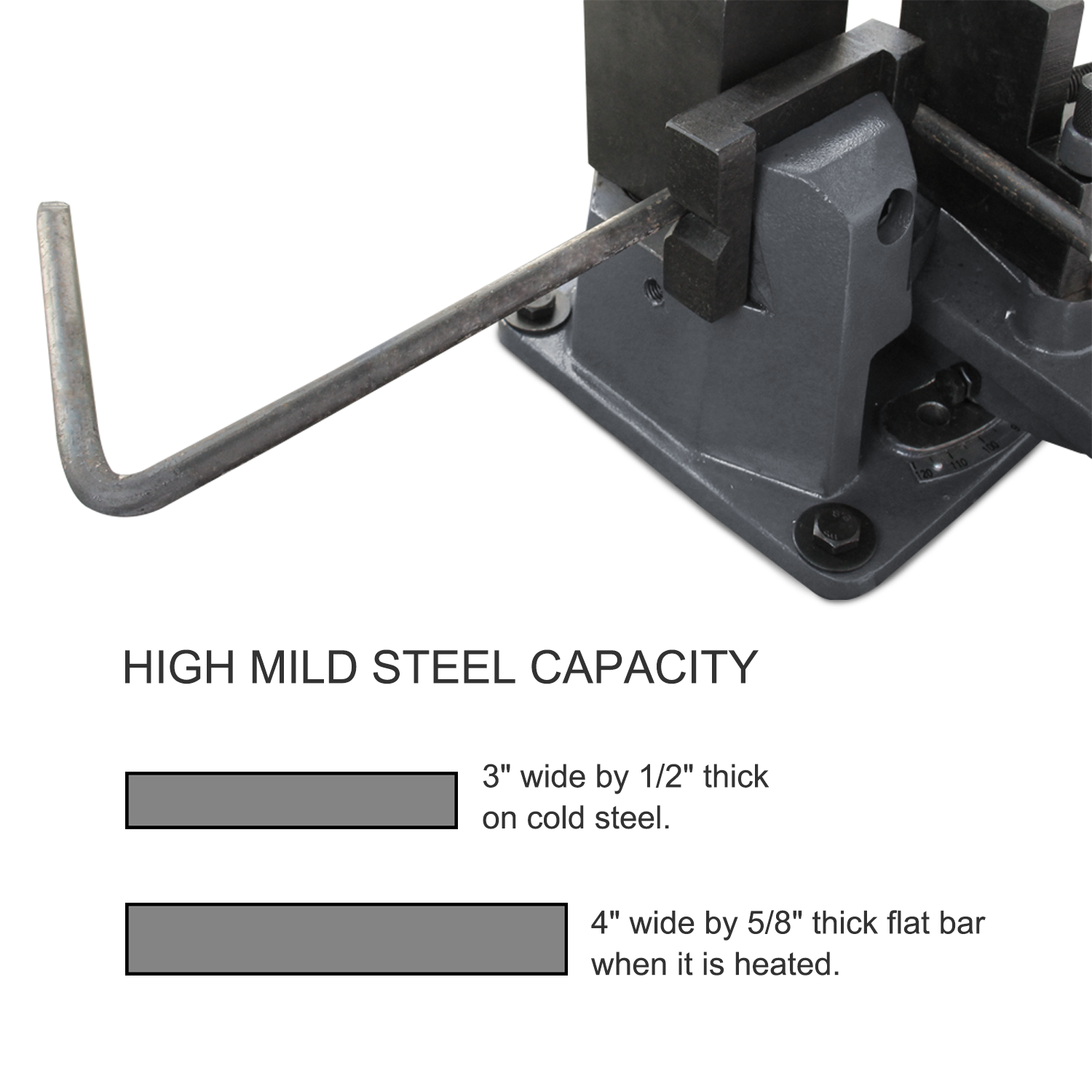

Capacity (inch) |
Flat steel |
Warm 2.75’x0.59′ |
|
Round steel |
Warm 0.86′ |
|
|
Square steel |
0.7’x0.7′ |
|
|
Angle steel |
2.36′x0.31“ 2.76” x 0.59“ |
|
|
Packing size (inch) |
Body:15×11-1/2×11-1/2 in |
|
|
Handle: 28-3/4×7-1/2×5-1/4 in |
||
|
N.W/G.W (lbs) |
62/64 lbs |
|

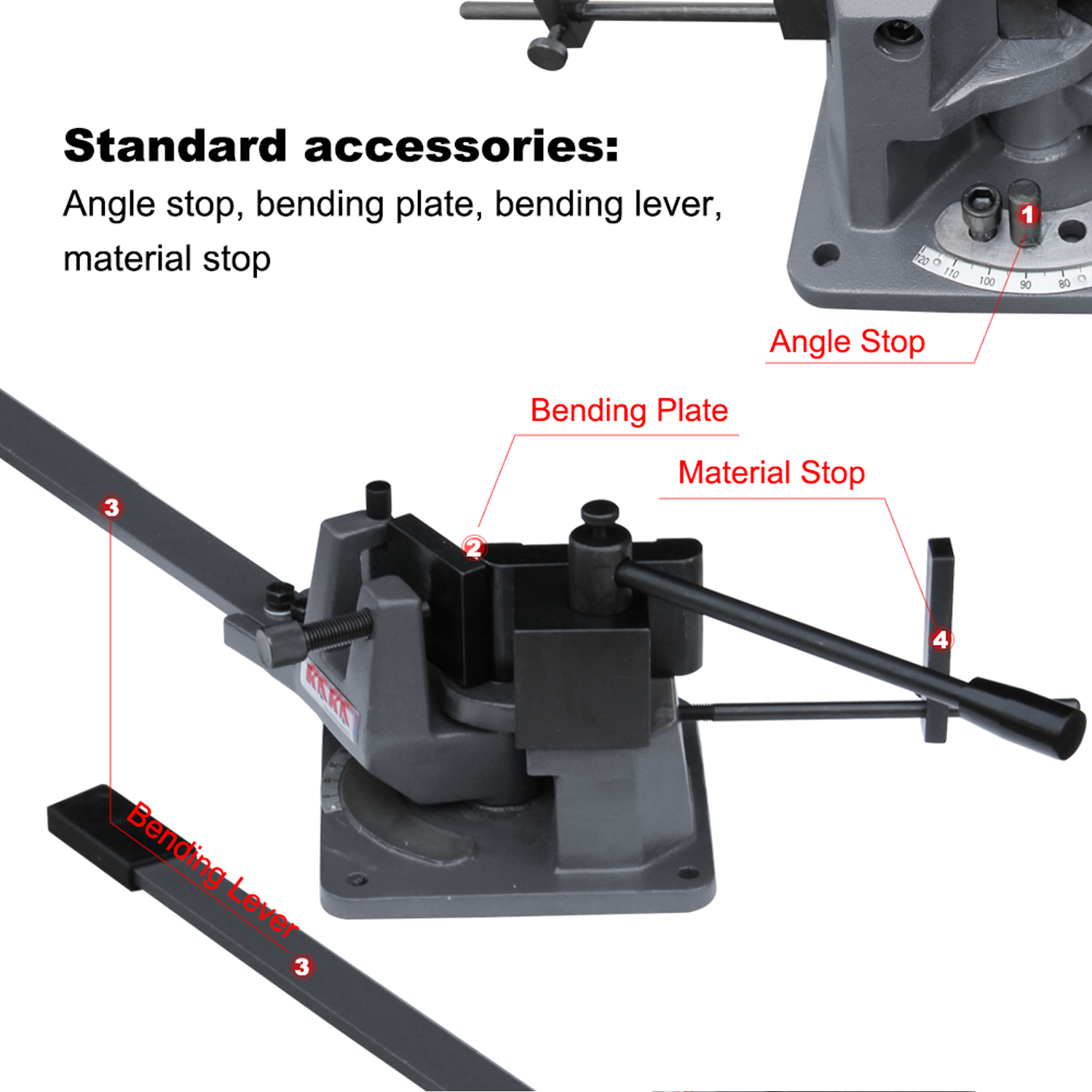

Standard accessories:
Angle stop, bending plate, bending lever, material stop
Optional accessories:
No optional accessory
Manual
UB-70 Manual
