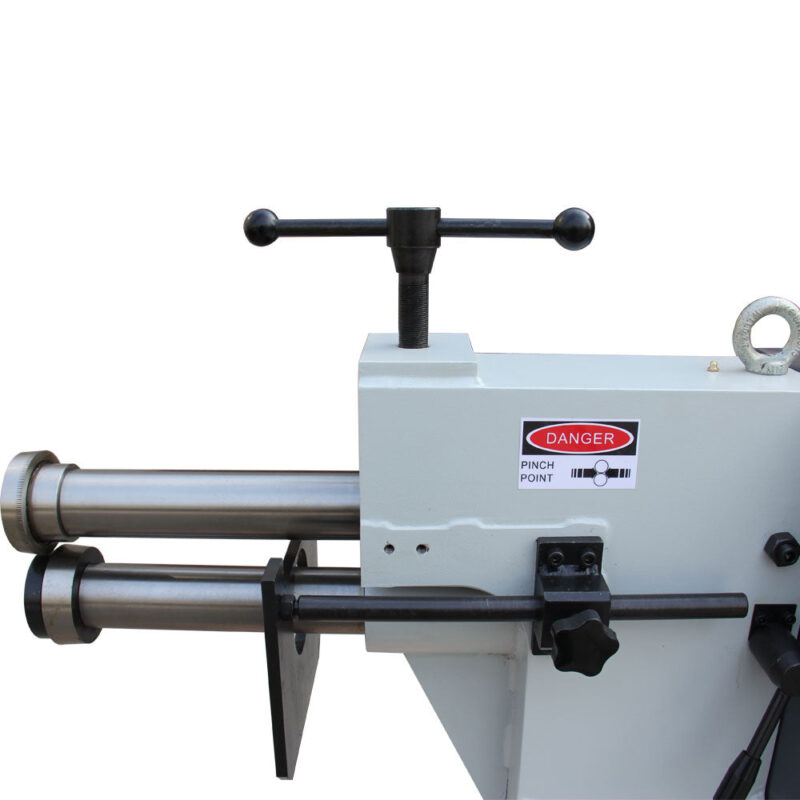

KAKAIndustrial ETB-25 Electric Bead Bending Machine, Sheet Metal Beading Machine, 220V-60HZ-3PH

Description

Features:

1. Steel welded construction frame
2. Adjustable idle roller
3. Steel shaft with bronze bushings
4. Reduction motor with brake system
5. Movement of rollers with foot pedal
6. Complete with stand
7. 4 sets standard rollers

Specification:

Item:173803
Model:ETB-25
Thickness max:2.5mm/ 12Ga.
Cylinder length:120mm/ 4 3/4″
Throat depth:280mm/ 11″
Cylinder speed:20 rpm
Motor Power:1.5Kw/ 2HP
Packing size:58″X23″X53″
Net weight:235 kg/ 518lbs

Accessories:

Standard accessories:
4 sets standard rollers
Optional accessories:
Rollers E1, E2, E3, E4, E5, E6, E7, E8

Manual

ETB-25 Manual
