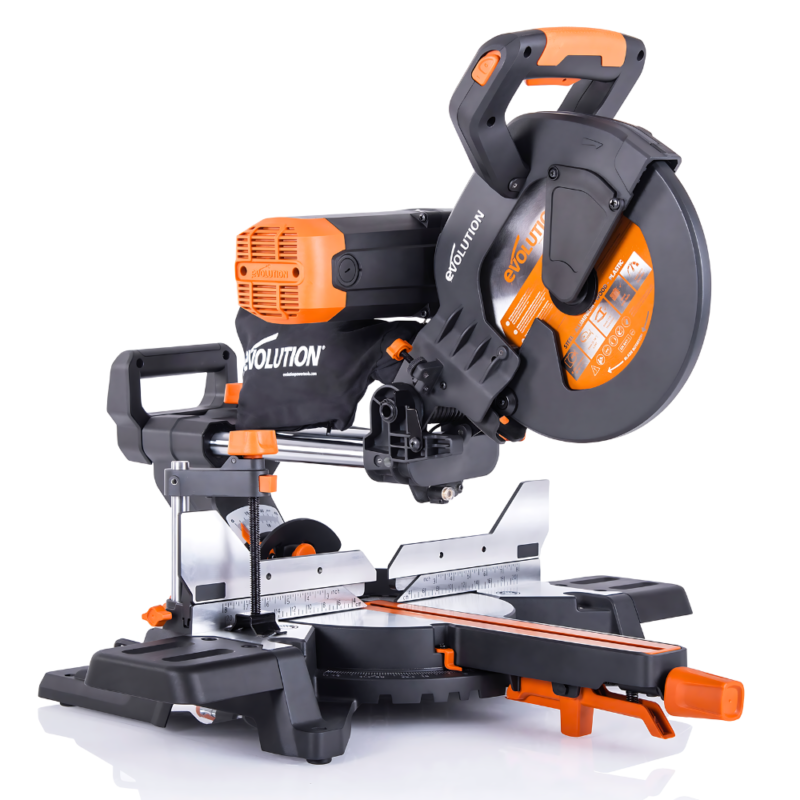

The biggest saw in the Evolution family of miter saws. An impressive 3-1/2 depth of cut and a 12-inch slide for big cross cuts in 4 x 4-inch fence posts, as well being able to cut through hardwoods, mild steel, aluminum, plastic and more with a single blade included with the machine. Complete with all the accessories required to deliver fast, accurate, hassle-free cutting.
-
Multi-Material cutting technology. One saw, one blade, cuts all.*
-
Accurate cutting with 11-13/16-inch sliding functionality.
-
Adjustable depth of cut and laser precision guidance.
-
Smooth, square, reliable cutting every time in a variety of materials.
-
Cut mild steel with no heat, no burrs & virtually no sparks.
-
Powerful 15A hi-torque, optimized gearbox, and blade system to increase motor and blade life.
-
Perform crosscuts, miter cuts, bevel cuts and compound cuts with precision.
-
Cut 45° – 45° bevel tilt and 50˚ – 50˚ miter angles.
-
Quick click miter stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.
-
An impressive 11-13/16 x 3-1/2 inch max. crosscut capacity enables you to cut 4 x 4-inch posts.
-
Ambidextrous, ergonomic, horizontal trigger with comfortable grip combats repetitive strain.
-
Compatible with Evolution’s Mitre Saw Stand, perfect for accurate repeat cutting.
-
Evolution’s 3-year guarantee.
+PLUS Features
-

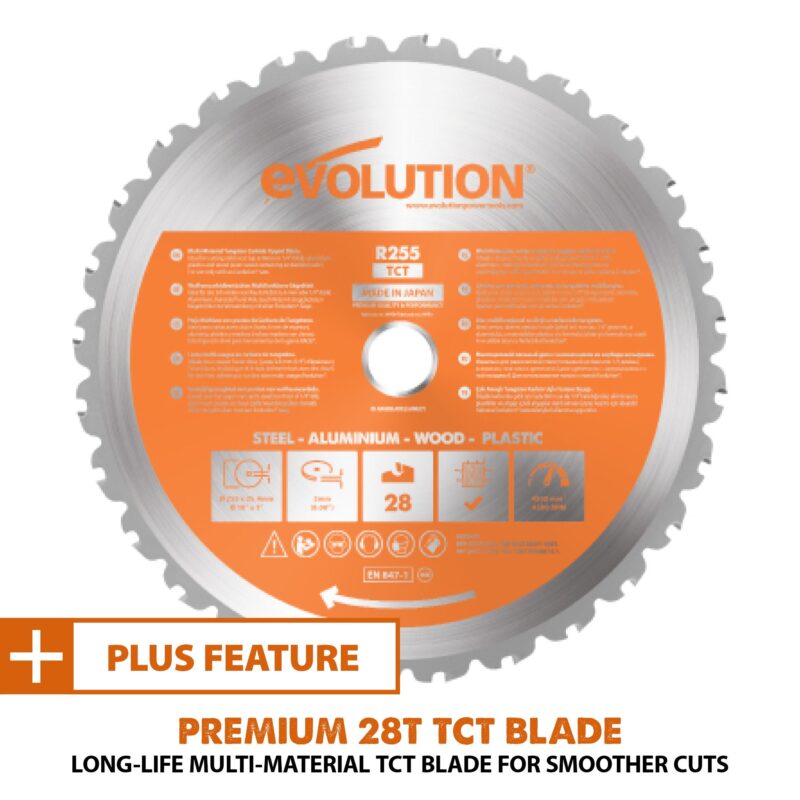

Includes a premium, TCT, 10-inch blade included for long-life, multi-material cutting.
-
Quick-Release top clamp included for additional safety and faster adjustments.
-
Tall neck and fences for increase cut capacity and versatility when cutting materials stood upright.
-

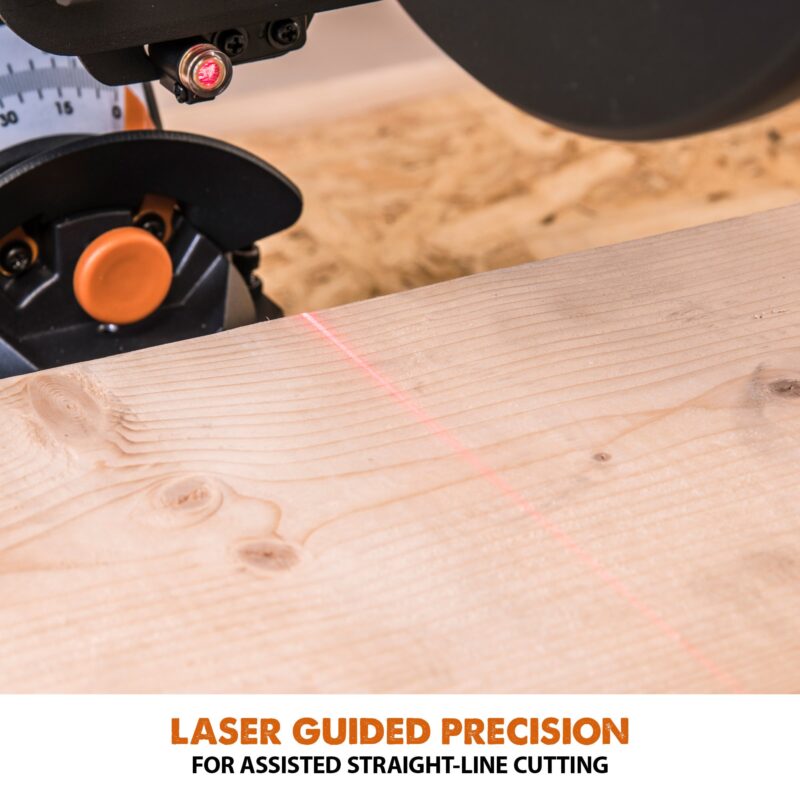

Laser-guided cutting line on your workpiece for assisted straight-line cutting.
-

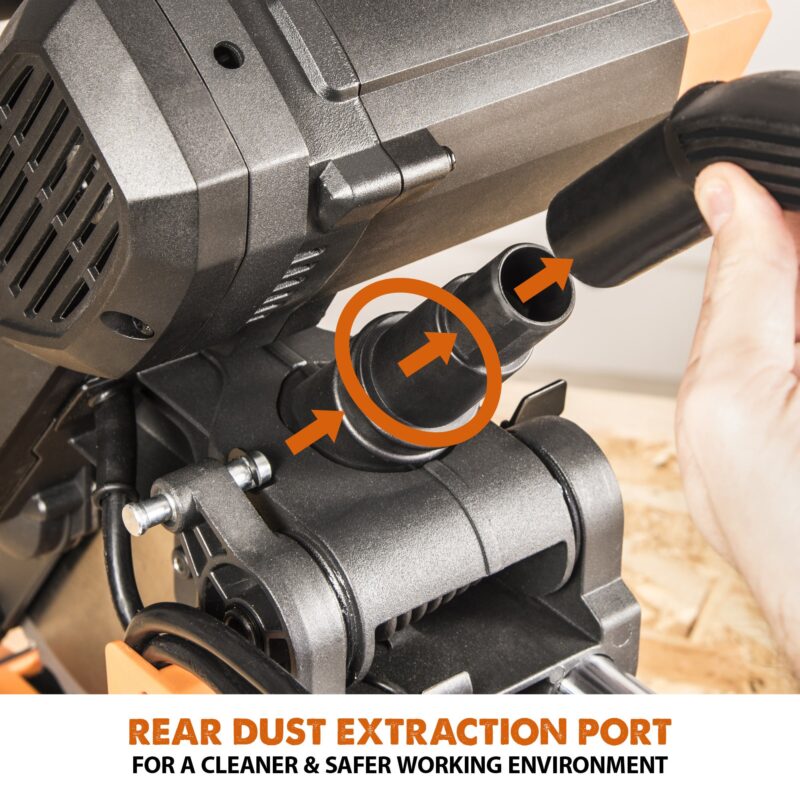

Cleaner and safer working environment with a dust collection bag and dust port adaptor for use with vacuum extraction.
-
Integrated carry handles – easy to carry and transport around the workplace.
-
13ft rubber power cable gives you the power and reach you need to get the job done.
Cutting Capacities
| Max. Cross Cut (0° x 0°): |
11-13/16 x 3-1/2 in. |
| Max. Bevel Cut Left (0° x 45°): |
11-13/16 x 2-1/16 in. |
| Max. Bevel Cut Right (0° x 45°): |
11-13/16 x 1-5/16 in. |
| Max. Miter Cut (45° x 0°): |
8-3/8 x 3-1/2 in. |
| Max. Compound Cut Left (45° x 45°): |
8-3/8 x 2-1/16 in. |
| Max. Compound Cut Right (45° x 45°): |
8-3/8 x 1-5/16 in. |
| Mild Steel Plate (Max. Thickness): |
1/4 in. |
| Mild Steel Box Section (Max. Wall Thickness): |
1/8 in. |

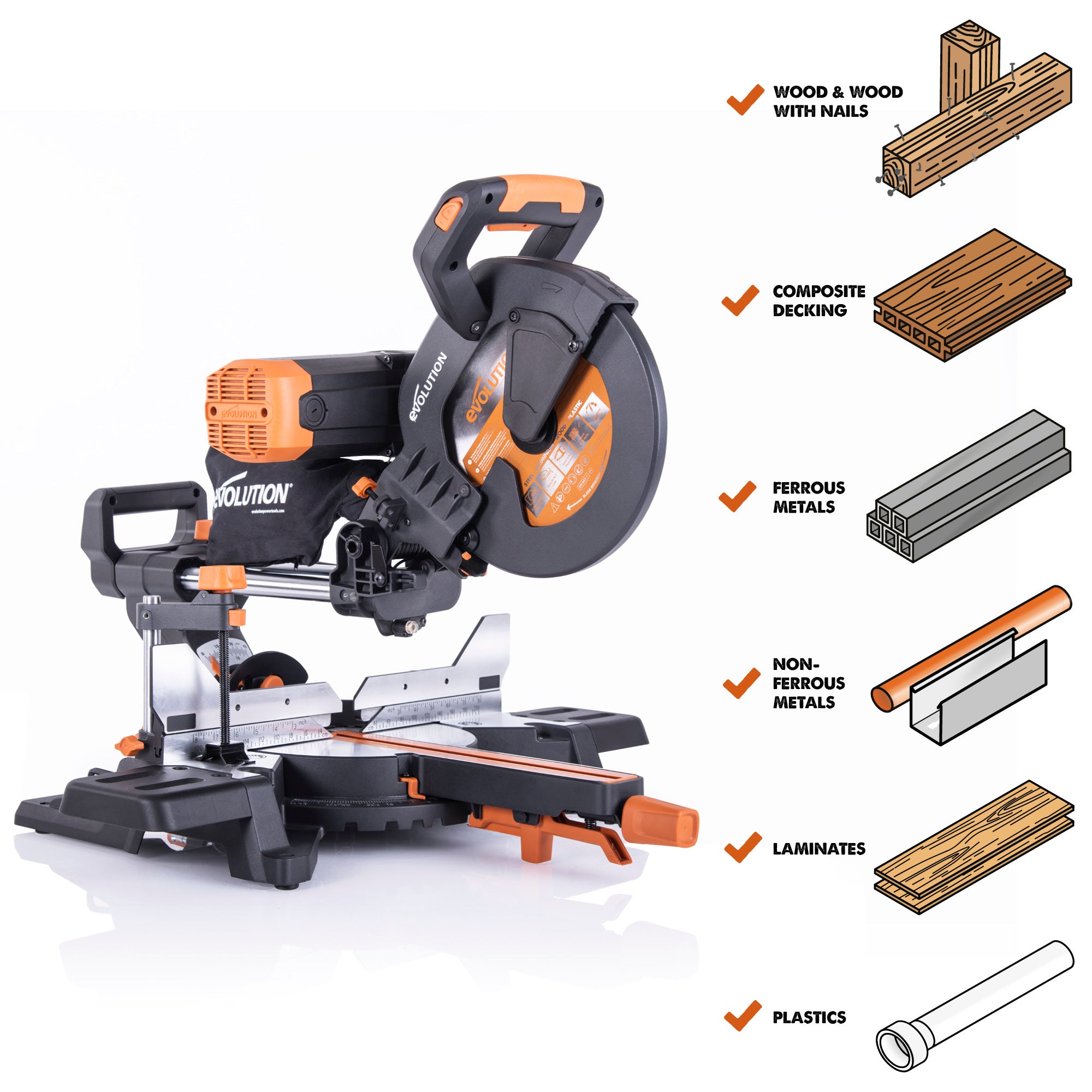

Cutting Applications
| Wood |
Hardwood & tanalized decking, MDF laminates, moldings, reclaimed wood with nails, scaffold boards & poles, stud-work. |
| Ferrous Metal |
Mild Steel, angled, box section, square tube, metal stud drywalling, rebar, RSJs, plate (1/4 inch), unistrut. |
| Non-Ferrous Metal |
Aluminum, armored cables, cable tray, copper, floor edgings, roof flashings, stair nosings. |
| Plastic |
Electrical conduit, plastic pipes, plexiglass, rubber & reinforced hoses, (WPC) Wood Plastic Composites. |
| Not Recommended |
Hardened high carbon, coated and stainless steel.
Note: Cutting galvanized steel may reduce blade life. |
Specifications
Machine Specs
| Motor (120V 60Hz): |
15 A |
| Speed No Load: |
2600 rpm |
| Max. Bevel (Left & Right): |
45° – 45° |
| Max. Miter: |
50° – 50° |
| Cable Length: |
13 ft |
Blade Specs
| Blade Dia.: |
10 in. |
| No. of Teeth: |
28 |
| Bore: |
1 in. |
| Kerf: |
0-5/64 in. |
Dimensions & Weights
| Product Dimensions: |
14-3/16 x 27-3/4 x 28-47/64 in. |
| Packaging Dimensions: |
22-1⁄4 x 14-3⁄8 x 20-15⁄32 in. |
| Product Weight: |
40.3 lbs |
| Packaged Weight: |
45 lbs |
Noise Data
| Sound Pressure Level LPA: |
95,8 dB(A) K=3 dB(A) |
| Sound Power Level LWA: |
108,8 dB(A) K=3 dB(A) |
Items Included
| Machine Table Extensions x2 |
6mm & 4mm Dual-Ended Hex Key |
| Rotary Table And Neck |
Cutting Head |
| Carriage Slides |
Mitre Locking Knob |
| Mains Cable |
Guide/Clamp |
| Self Tapping Cap Screw x1 |
M6 x 16mm Socket Headed |
| Screws x4 M5 x 12mm |
Socket Headed Screws x2 |
| Laser Lens Cap |
Cable Clip |
| Slide Locking Knob |
Dust Port Adaptor |
| Dust Collection Bag |
Quick Release Hold Down Clamp |
| 10 In. (255mm) 28 Tooth Blade |
Instruction Manual |
